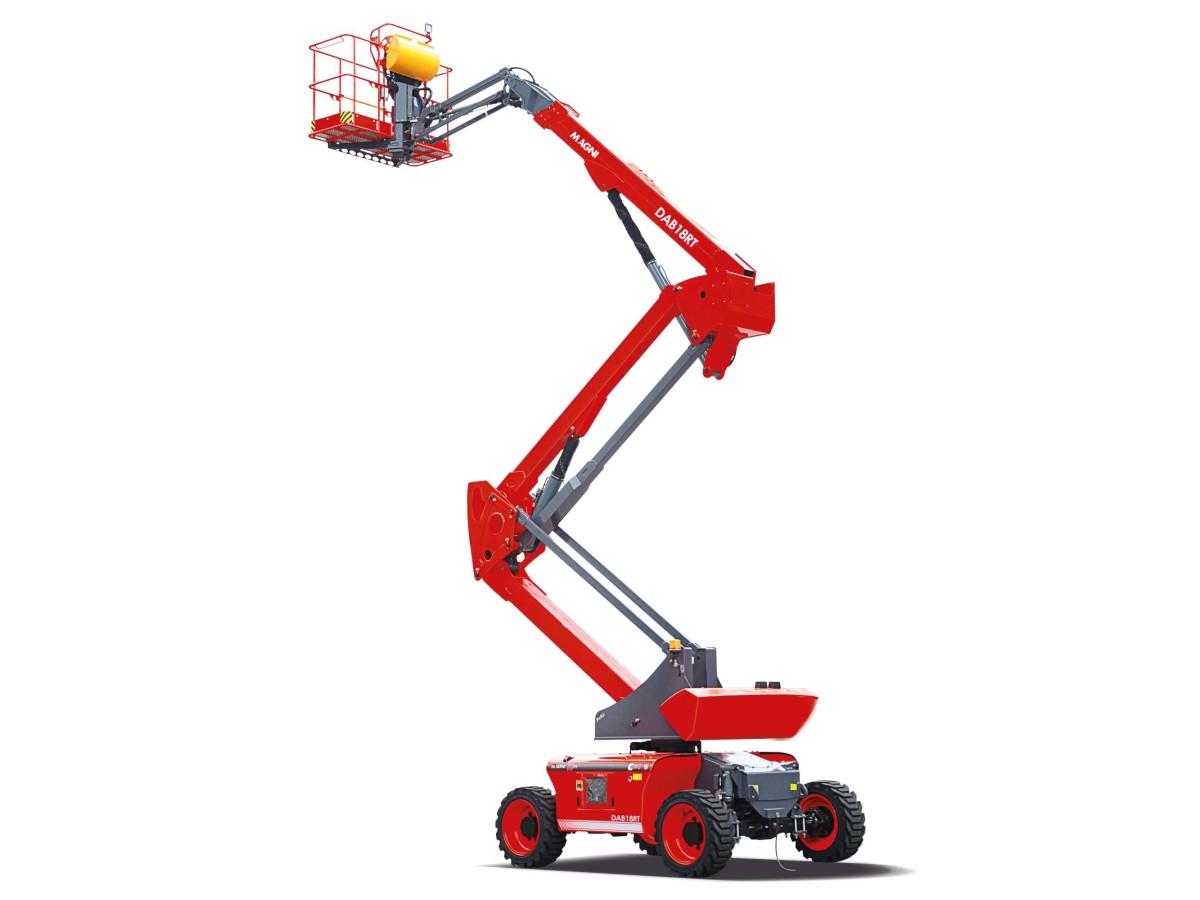

Articulated diesel platform DAB18RT
Articulated Diesel Magni 18m DAB18RT platform
Reference:
DAB18RT
Download technical sheet
The high-performance DAB18RT articulated platform has been designed with a focus on efficiency and versatility. With a low center of gravity, this platform is geared to deliver optimum performance in a wide variety of terrains. Equipped with a fuel-efficient diesel engine and four-wheel drive integrated into the axle, this platform ensures excellent grip on uneven terrain, making it an ideal choice for demanding jobs.
One of the outstanding features of this platform is its modular design, with compatible parts throughout the range, which facilitates maintenance and repair, and allows for greater flexibility in its configuration.
18 m
250 kg
DAB18RT
- Brand
- MAGNI
- Model
- DAB18RT
General features
- Weight
- 7920 KG
- Engine type
- Kubota D1105/18kW
- Height Elevation
- 18 meters
- Load capacity
- 250 KG
- Platform Height
- 2.55 meters
- Maximum range
- 9.640000000000001 meters
- Transmission
- Hydrostatic
- Wheelbase
- 2.3 mm
- Max. no. of occupants
- 2
- Platform length
- 7.41 meters
- Ground clearance
- 310 mm
- Turning radius (inside)
- 2.92 meters
- Turning radius (outside)
- 4.49 meters
- Travel speed (closed configuration)
- 6 km/h
- Travel speed (working configuration)
- 1.1 km/h
- Max. working slope
- 0.4
- Tires
- 315/55 D20
- Max. basket height
- 16.04 meters
- Point of articulation
- 8.23 meters
- Height below ground
- 1.3 meters
- Subway reach
- 8.23 meters
- Max. lift capacity (stored)
- X-5°/Y-5°
- Max. wind speed
- 12.50 m/s
- Turret rotation
- 360° (continued)
- Type of jib
- Regular
- Jib length
- 4.2 meters
- Vertical boom rotation
- 132°
- Basket width
- 0.79 meters
- Basket length
- 1.83 meters
- Basket rotation
- 180°
- Tail swing
- 0.19 meters
- Hydraulic tank capacity
- 145 L
- Diesel tank capacity
- 115
- Platform length (Transport)
- 5.57 meters
- Motorisation
- Diesel
The Magni DAB18RT Diesel Articulated Platform is a highly versatile and powerful lifting machine designed to tackle a wide variety of work-at-height applications in industrial and construction environments. With a maximum working height of 18 meters and a load capacity of up to 350 kg, this articulated platform offers reliable performance and versatility in an impressive design.
Outstanding Performance:
The DAB18RT is equipped with a powerful and efficient diesel engine that provides fast travel and smooth lifting. Its ability to reach considerable heights makes it an ideal choice for a variety of applications, such as maintenance work in tall buildings, equipment installation, outdoor work and more. Its versatile reach allows operators to reach hard-to-reach areas with ease.
Large Work Platform:
The articulating platform provides a spacious platform that allows operators to carry tools and materials needed for work at height. This increases efficiency and productivity by reducing the need to repeatedly lower and raise to obtain or deliver equipment and materials. The large work surface provides space to perform tasks comfortably and safely.
Access Flexibility:
The articulating capability of the DAB18RT is a standout feature. Its articulating design allows it to reach hard-to-reach areas, such as over obstacles or structures, making it invaluable on jobs that require maneuverability and versatility in challenging work environments. This allows operators to precisely position themselves to perform specific tasks.
Comprehensive Safety:
Safety is a key priority in the design of Magni, and the DAB18RT is no exception. It has advanced safety features such as guard rails, effective braking systems and intuitive controls that ensure the protection of both the operator and people working near the machine. In addition, its stability and robust design contribute to a safe working environment.
Simplified Maintenance:
Access to key components has been simplified to reduce downtime and minimize service costs. This means your operation can run efficiently without long periods of downtime due to maintenance.
Optimize Your Workplace:
The Magni DAB18RT Diesel Articulating Platform is an exceptional choice for those looking for power, versatility and safety in their work-at-height operations. Its impressive reach capability, wide working platform, access flexibility, robust design and comprehensive safety make it a solid investment for improving efficiency and productivity in a variety of industrial and construction environments. Trust Magni to take your operations to the next level and optimize your jobsite with this versatile and powerful articulating platform.
You may also like

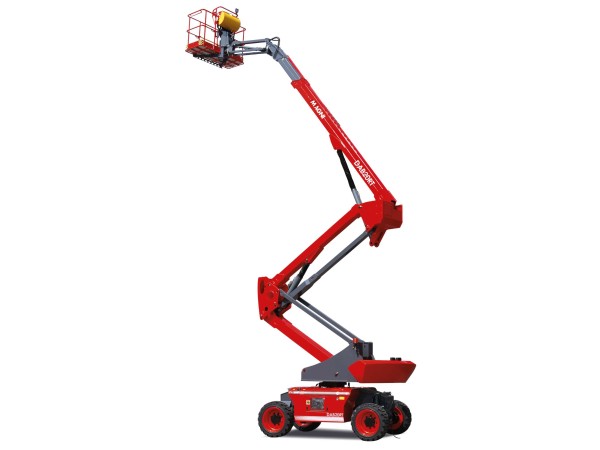

The DAB20RT high-performance articulated boom lift has been designed...

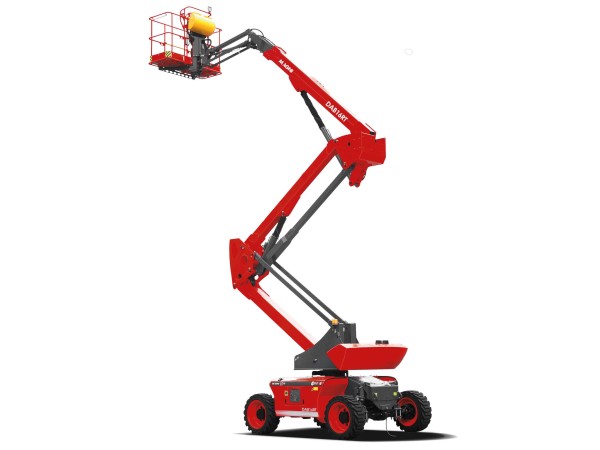

La plataforma articulada DAB16RT ha sido cuidadosamente diseñada para...
